8.5.1 Schematic-Based Design Flow Illustrated

The following figure shows the schematic-based design flow for creating an Actel device using the eProduct Designer and Designer Series software.

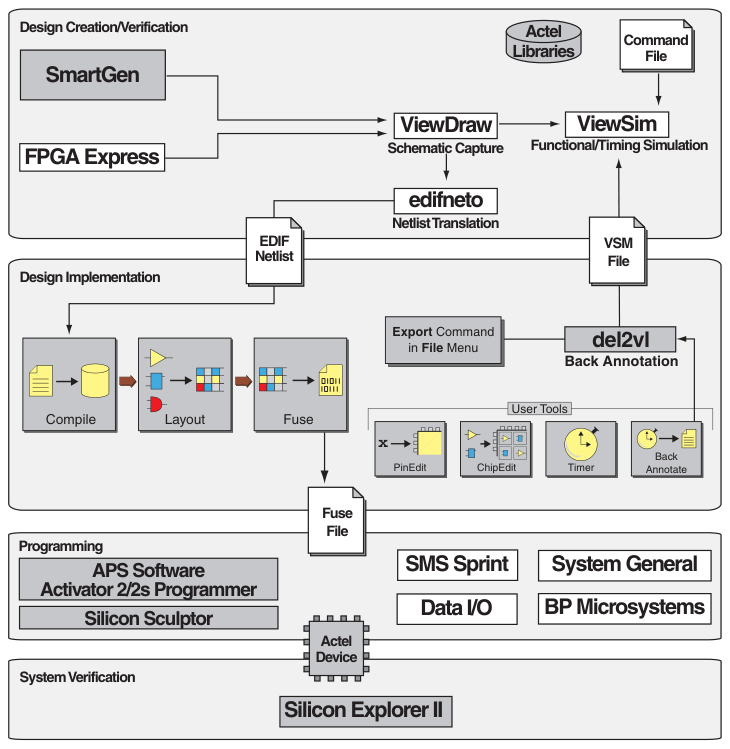

Figure 8-2. Actel-Innoveda Schematic-Based Design Flow

The grey boxes in the preceding figure denote Actel-specific utilities/tools.
