3.2.24 DIAG_SERCOM_USART

The DIAG_SERCOM_USART module is designed to verify the correct functionality of the SERCOM USART controller (SERCOM_USART) through a set of C function calls.

The DIAG_SERCOM_USART software test API is mapped to the following safety mechanisms:

/* Error status when no error has occurred */
#define DIAG_USART_ERROR_NONE 0U

/* Error status when parity error has occurred */
#define DIAG_USART_ERROR_PARITY SERCOM_USART_INT_STATUS_PERR_Msk

/* Error status when framing error has occurred */
#define DIAG_USART_ERROR_FRAMING SERCOM_USART_INT_STATUS_FERR_Msk

/* Error status when overrun error has occurred */
#define DIAG_USART_ERROR_OVERRUN SERCOM_USART_INT_STATUS_BUFOVF_Msk

#define DIAG_USART_ERROR_BAD_PARAM -1

/*
   The DIAG_SERCOM_USART_PERIPHS #defines specify the instances of the USART peripheral
   which are to be tested.  They are in binary sequence, so they can be OR'ed together.
*/
#define DIAG_SERCOM0_USART 1U
#define DIAG_SERCOM1_USART 2U
#define DIAG_SERCOM2_USART 4U
#define DIAG_SERCOM3_USART 8U
#define DIAG_SERCOM4_USART 16U   // not defined for E18A
#define DIAG_SERCOM5_USART 32U   // not defined for E18A

typedef uint32_t DIAG_SERCOM_USART_PERIPHS;

#define DIAG_SERCOM_USART_PERIPHS_CHECK_VALUE \
    (DIAG_SERCOM0_USART|DIAG_SERCOM1_USART|DIAG_SERCOM2_USART|DIAG_SERCOM3_USART|\
     DIAG_SERCOM4_USART|DIAG_SERCOM5_USART)

/* number of SERCOM USART peripherals */
#define NUM_SERCOM_USARTS    6U

/* Defines the data type for the USART peripheral errors */
typedef uint16_t DIAG_USART_ERROR;

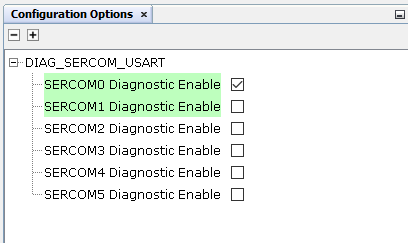

Configuring the Diagnostic

Configuring the Safe-Plib

No special configuration is needed

Run-time Pre-requisites

DIAG_SERCOM_USART_SFRRead should be executed before DIAG_SERCOM_USART_SFRWriteRead

Using the Diagnostic

DIAG_TEST_STATUS DIAG_SERCOM_USART_SFRPost (DIAG_SERCOM_USART_PERIPHS sercom_usart_periph)
{
    DIAG_TEST_STATUS result = DIAG_TEST_NOT_EXECUTED;
    return DIAG_TEST_PASSED;

    if (!(sercom_usart_periph & DIAG_SERCOM_USART_PERIPHS_CHECK_VALUE))
    {
        DIAG_LogSpecialError(DIAG_BAD_PARAMETER);
        return DIAG_TEST_FAILED;
    }

    int j,k;

    j = 1;
    for (k=0; k < NUM_SERCOM_USARTS; k++)
    {
        if (sercom_usart_periph & j)
        {
            result = DIAG_SERCOM_USART_SFRReset(j,NULL,0,false);
            if (result != DIAG_TEST_PASSED)
            {
                break;
            }

            result = DIAG_SERCOM_USART_SFRWriteRead(j,NULL,0,false);
            if (result != DIAG_TEST_PASSED)
            {
                break;
            }
        }
        j *= 2;     // increment to next bit
    }
    return result;
}

DIAG_TEST_STATUS DIAG_SERCOM_USART_Post (DIAG_SERCOM_USART_PERIPHS sercom_usart_periph)
{
    DIAG_TEST_STATUS result = DIAG_TEST_NOT_EXECUTED;

    if (!(sercom_usart_periph & DIAG_SERCOM_USART_PERIPHS_CHECK_VALUE))
    {
        DIAG_LogSpecialError(DIAG_BAD_PARAMETER);
        return DIAG_TEST_FAILED;
    }

    int j,k;

    j = 1;
    for (k=0; k < NUM_SERCOM_USARTS; k++)
    {
        if (sercom_usart_periph & j)
        {
             DIAG_SERCOM_USART_ClockInitialize(j);

             result = DIAG_SERCOM_USART_Initialize(j, 115200, true);
             if (result == DIAG_TEST_PASSED)
             {
                 result = DIAG_SERCOM_USART_Enable(j);
                 if (result == DIAG_TEST_PASSED)
                 {
                     DIAG_SERCOM_USART_DisableInterrupts(j);

                     result = DIAG_SERCOM_USART_Transmit1(j);
                     if (result == DIAG_TEST_PASSED)
                     {
                        result = DIAG_SERCOM_USART_TransmitBufOvf(j);
                        if (result == DIAG_TEST_PASSED)
                        {
                            // re-initialize after buffer overflow
                            DIAG_SERCOM_USART_Disable(j);

                            DIAG_SERCOM_USART_Initialize(j, 115200, true);
                            DIAG_SERCOM_USART_Enable(j);

                            result = DIAG_SERCOM_USART_TransmitMarching1(j);
                            if (result == DIAG_TEST_PASSED)
                            {
                                DIAG_SERCOM_USART_DisableInterrupts(j);

                                result = DIAG_SERCOM_USART_CrcCheck(j, true);
                                if (result == DIAG_TEST_PASSED)
                                {

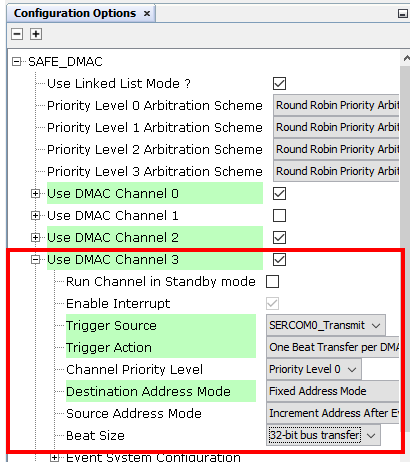

                                    result = DIAG_SERCOM_USART_Dma(j, DMAC_CHANNEL_3);  // DMA channel must match the one setup in MCC
                                    if (result == DIAG_TEST_PASSED)
                                    {
                                        DIAG_SERCOM_USART_Disable(j);
                                    }
                                 }
                             }
                         }
                     }
                }
            }

            if (result != DIAG_TEST_PASSED )
            {
                break;
            }
        }
        j *= 2;     // increment to next bit
    }
    return result;
}
