3.2.6 DIAG_DAC

The DIAG_DAC module is designed to verify the correct functionality of the Digital to Analog Controller (DAC) through a set of C function calls.

The DIAG_DAC software test API is mapped to the following safety mechanisms:

Configuring the Diagnostic

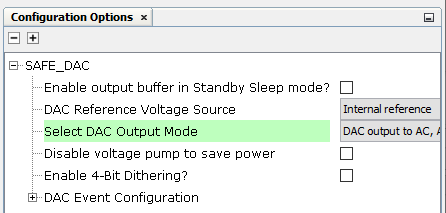

DAC Safe-Plib must be configured as illustrated to supported to support all diagnostics:

Run-time Pre-requisites

DIAG_DAC_SFRRead should be executed before DIAG_DAC_SFRWriteRead

DAC requires the ADC0 peripheral to be instantiated.

Using the Diagnostic

#include "diag_definitions.h"

// DAC SFR testing
DIAG_TEST_STATUS DIAG_DAC_SFRPost()
{
    DIAG_TEST_STATUS result;

    result = DIAG_DAC_SFRReset(NULL,0,false);
    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DAC_SFRWriteRead(NULL,0,false);
    }

    return result;
}


// DAC Post testing
DIAG_TEST_STATUS DIAG_DAC_Post()
{
    DIAG_TEST_STATUS result;

    result = DIAG_DAC_Enable();

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DAC_Disable();
    }

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DAC_Linearity(DIAG_ADC0);
    }

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DAC_MaxSpeed();
    }

    return result;
}
