3.2.8 DIAG_DMAC

The DIAG_DMAC module is designed to verify the correct functionality of the Direct Memory Access Controller (DMAC) through a set of C function calls.

The DIAG_DMAC software test API is mapped to the following safety mechanisms:

Configuring the Diagnostic

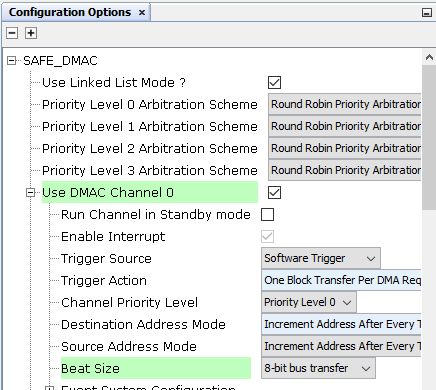

DMAC Safe-Plib must be configured as illustrated to supported to support all diagnostics:

Using the Diagnostic (example reference)

#include "definitions.h"

// SFR testing
DIAG_TEST_STATUS DIAG_DMAC_SFRPost()
{
    DIAG_TEST_STATUS result = DIAG_TEST_NOT_EXECUTED;

    NVMCTRL_Initialize();

    result = DIAG_DMAC_SFRReset(NULL,0,false);

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DMAC_SFRWriteRead(NULL,0,false);
    }

    return result;
}


// Post testing
DIAG_TEST_STATUS DIAG_DMAC_Post()
{
    DIAG_TEST_STATUS result;

    result = DIAG_DMAC_Transfer(DMAC_CHANNEL_9);

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_DMAC_Interrupts(DMAC_CHANNEL_9);

        if (result == DIAG_TEST_PASSED)
        {
            result = DIAG_DMAC_LinkedList(DMAC_CHANNEL_9);
        }
    }
    return result;
}
