3.2.23 DIAG_SDADC

The DIAG_SDADC module is designed to verify the correct functionality of the Sigma-Delta Analog-to-Digital Converter (SDADC) through a set of C function calls.

Note: Only one pair of inputs are available on the: ATSAMC21E18A-AUT-SL3. External hardware is required if the user executes diagnostics.

The DIAG_SDADC software test API is mapped to the following safety mechanisms:

Table 3-23.
Function	Diagnostic Mechanism	Use Case	Elasped Timer (μs) ~
DIAG_SDADC_Boundary()	SDADC_BOUNDARY	POST / OnDemand	499
DIAG_SDADC_Disable()	SDADC_DISABLE	POST / OnDemand	320
DIAG_SDADC_Dma()	SDADC_DMA	POST	255.47
DIAG_SDADC_Enable()	SDADC_ENABLE	POST / OnDemand	211
DIAG_SDADC_Interrupts()	SDADC_INTERRUPTS	POST	988.89
DIAG_SDADC_Linearity()	SDADC_LINEARITY	POST	341.64
DIAG_SDADC_Operation()	SDADC_OPERATION	POST	118
DIAG_SDADC_SFRReset()	SFR_RESET	POST	84.11
DIAG_SDADC_SFRWriteRead()	SFR_WRITE_READ	POST / OnDemand	93.09

typedef enum {
    DIAG_SADC_AIN0,
    DIAG_SADC_AIN1,
    DIAG_SADC_AIN2,
} DIAG_SADC_AIN;

Configuring the Diagnostic

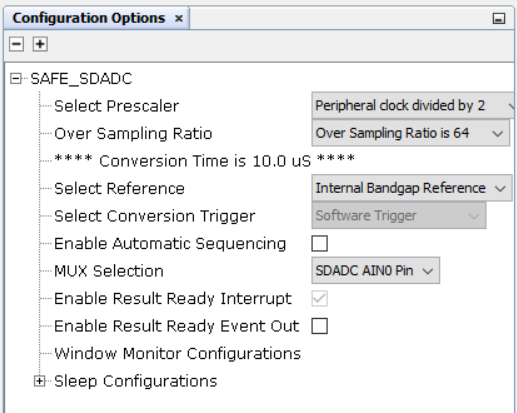

DIAG_SDADC Safe-Plib must be configured as illustrated to supported to support all diagnostics:

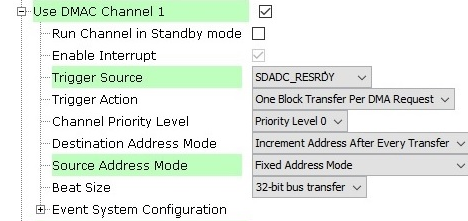

Configuring the System

Pin Mapping

Run-time Pre-requisites

DIAG_SDADC_SFRReset should be executed before DIAG_SDADC_SFRWriteRead

Using the Diagnostic

#include "diag_definitions.h"


DIAG_TEST_STATUS DIAG_SDADC_SFRPost()
{
    DIAG_TEST_STATUS result = DIAG_TEST_NOT_EXECUTED;

    result = DIAG_SDADC_SFRReset(NULL,0,false);

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_SDADC_SFRWriteRead(NULL,0,false);
    }

    return result;
}


DIAG_TEST_STATUS DIAG_SDADC_Post()
{
    DIAG_TEST_STATUS result;

    result = DIAG_SDADC_Enable();

    if (result == DIAG_TEST_PASSED)
    {
        result = DIAG_SDADC_Disable();

        if (result == DIAG_TEST_PASSED)
        {
            result = DIAG_SDADC_Linearity(DIAG_SADC_AIN1);

            if (result == DIAG_TEST_PASSED)
            {
                result = DIAG_SDADC_Boundary(DIAG_SADC_AIN1);

                if (result == DIAG_TEST_PASSED)
                {
                    result = DIAG_SDADC_Interrupts(DIAG_SADC_AIN1);

                    if (result == DIAG_TEST_PASSED)
                    {
                        result = DIAG_SDADC_Operation(DIAG_SADC_AIN1, DIAG_SADC_AIN2);

                        if (result == DIAG_TEST_PASSED)
                        {
                            result = DIAG_SDADC_Dma(DIAG_SADC_AIN1, DMAC_CHANNEL_1);
                        }
                    }
                }
            }
        }
    }

    return result;
}
