24.4.4.7.1 Transmission Data

The data to be transmitted is expected to be provided to the controller in the Transmit FIFO, as shown in Figure 24-19. The controller places the Least Significant Byte (LSB) of data as the first byte on the I3C bus, followed by successive bytes.

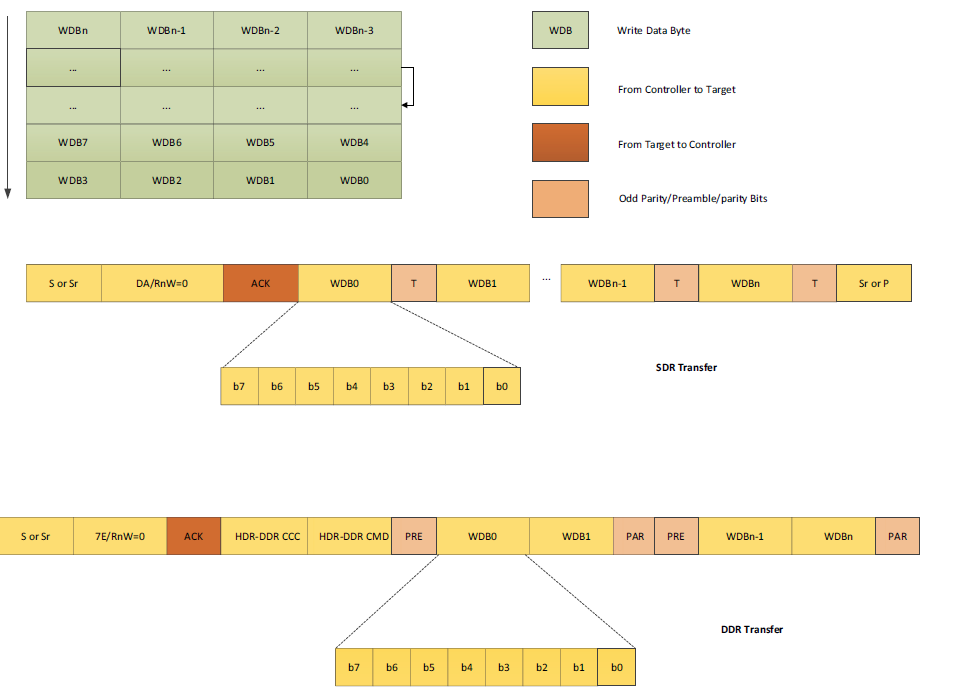

A screenshot of a computer AI-generated content may be incorrect. — Figure 24-19. Byte Ordering - Transmit Data
