1.14 Pin Configuration

The I/O pins on the device can perform alternate functions besides the general-purpose I/O function. In this section, we will configure the functionality of the I/O pins needed for this demonstration.

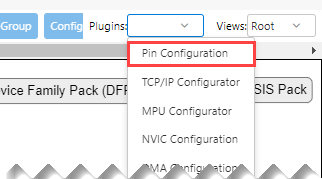

From the “Plugins” drop-down list, select “Pin Configuration”.

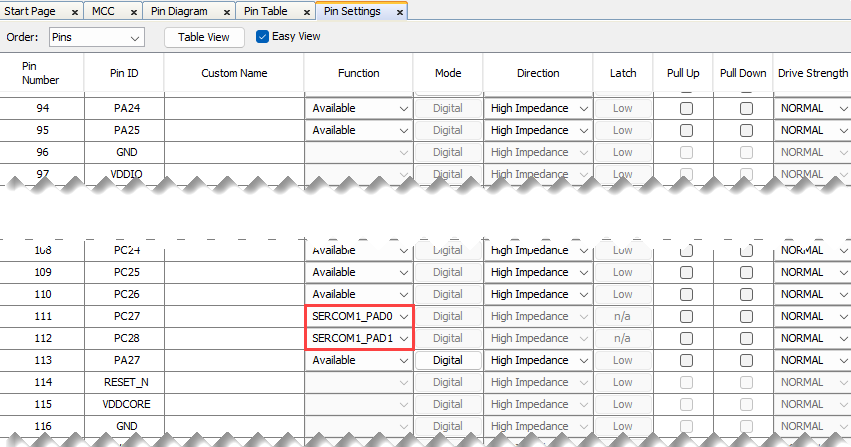

Configure the pins for “SERCOM1” as shown below.

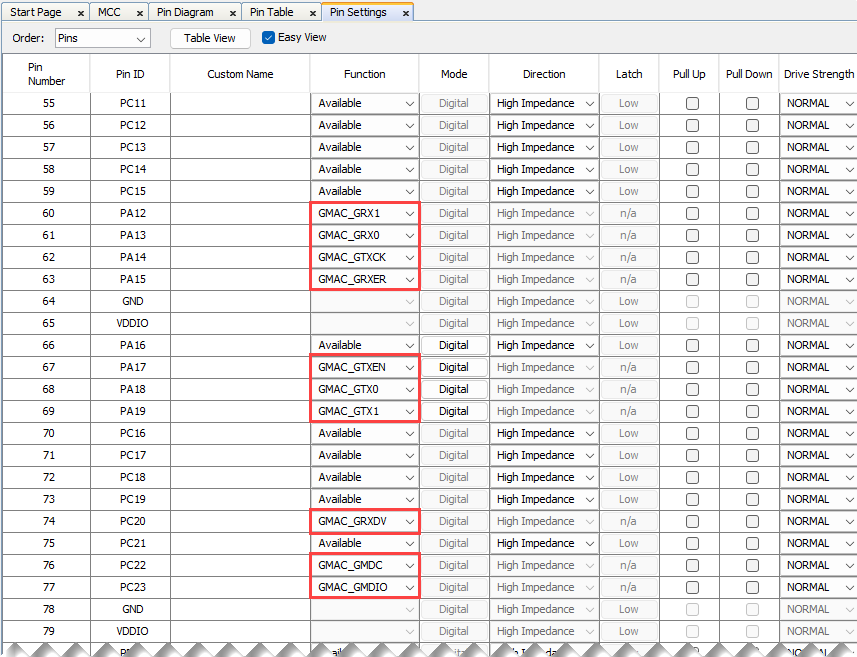

Configure the pins for the “GMAC”.
