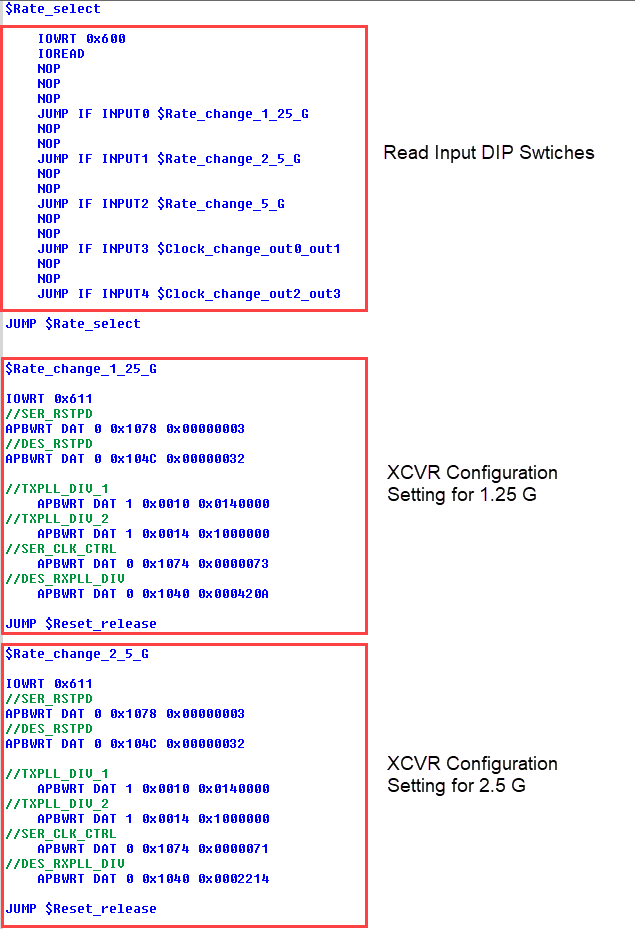

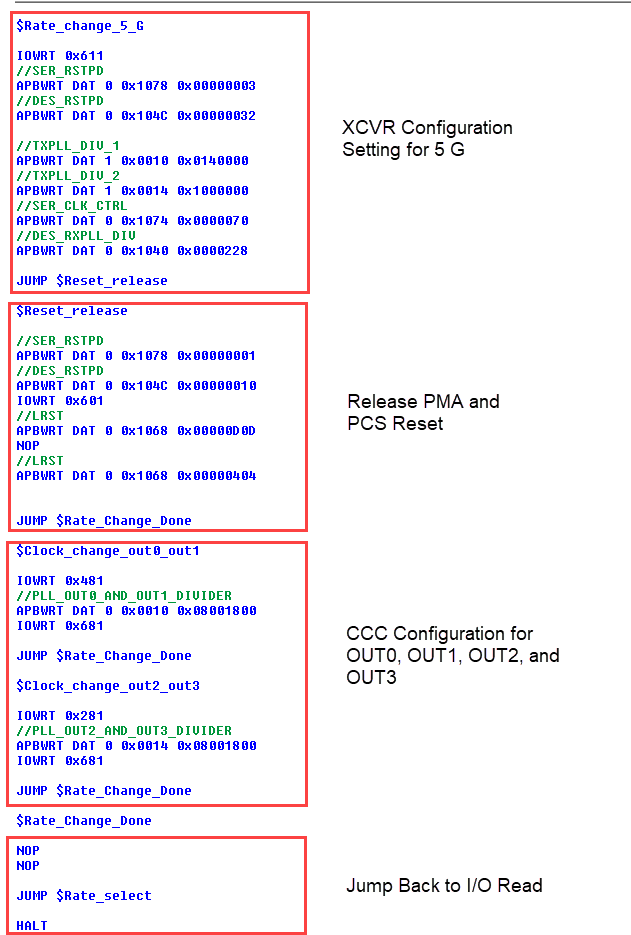

The following figure shows the register settings required for performing
DRI instructions. The DIP switches are connected to the inputs of CoreABC and are used to
control the switching between the rates.Figure 1-4. CoreABC Program
Figure 1-5. CoreABC Program-Continued
