9.13.9 Custom Security Levels

For advanced use cases, you can customize the security levels applied to the device.

See the following tables for descriptions of the available custom security options.

Table 9-16. FPGA Array Security Options

Security Option	Description
Lock for both writing and verifying	Allows writing/erasing and verification of the FPGA Array through the JTAG interface only with a valid Pass Key.
Lock for writing	Allows writing/erasing of the FPGA Array only with a valid Pass Key. Verification is allowed without a valid Pass Key.
Use the AES Key for both writing and verifying	Allows writing/erasing and verification of the FPGA Array through the JTAG interface only with a valid AES Key. This configures the device to accept an encrypted bitstream for reprogramming and verification. Use this option when programming at an unsecured site or when planning remote updates. Accessing device security settings requires a valid Pass Key.
Allow write and verify	Allows writing/erasing and verification of the FPGA Array using a plain‑text bitstream without requiring a Pass Key or AES Key. Use this option during in‑house development.

Table 9-17. FlashROM Security Options

Security Option	Description
Lock for both reading and writing	Allows writing/erasing and reading of FlashROM through the JTAG interface only with a valid Pass Key. Verification is allowed without a valid Pass Key.
Lock for writing	Allows writing/erasing of FlashROM through the JTAG interface only with a valid Pass Key. Reading and verification are allowed without a valid Pass Key.
Use the AES Key for both writing and verifying	Allows writing/erasing and verification of FlashROM through the JTAG interface only with a valid AES Key. This configures the device to accept an encrypted bitstream for reprogramming and verification. Use this option when programming at an unsecured site or when planning remote updates. Note: FlashROM readback is always unencrypted (plain text).
Allow reading, writing, and verifying	Allows writing/erasing, reading, and verification of FlashROM content using a plain‑text bitstream without requiring a Pass Key or AES Key. The FPGA Array can always read FlashROM content regardless of these settings.

Table 9-18. Embedded Flash Memory Block Security Options

Security Option	Description
Lock for reading, verifying, and writing	Allows writing and reading of the Embedded Flash Memory Block through the JTAG interface only with a valid Pass Key. Verification is performed by readback and comparison.
Lock for writing	Allows writing of the Embedded Flash Memory Block through the JTAG interface only with a valid Pass Key. Reading and verification are allowed without a valid Pass Key.
Use AES Key for writing	Allows writing of the Embedded Flash Memory Block through the JTAG interface only with a valid AES Key. This configures the device to accept an encrypted bitstream for reprogramming. Use this option when programming at an unsecured site or when planning remote updates. Note: Readback of Embedded Flash Memory Block content is always unencrypted (plain text) when a valid Pass Key is provided.
Allow reading, writing, and verifying	Allows writing, reading, and verification of Embedded Flash Memory Block content using a plain‑text bitstream without requiring a Pass Key or AES Key.

1. To make the selected security settings permanent, select the Permanently lock the security settings checkbox. This option prevents any future modification of the device security configuration. A Pass Key is not required when using this option.
   Note: When security settings are permanently locked:

   • The Silicon Signature can never be reprogrammed.
   • If write operations are locked for the FPGA Array or FlashROM, those components can never be reprogrammed.
   • If an AES Key is used, it cannot be changed after permanent locking.
2. (SmartFusion Only) Enable M3 Debugger option enables access to the M3 debugger even if security is enforced. Select the Enable M3 debugger checkbox if you want to access the M3 debugger after programming.

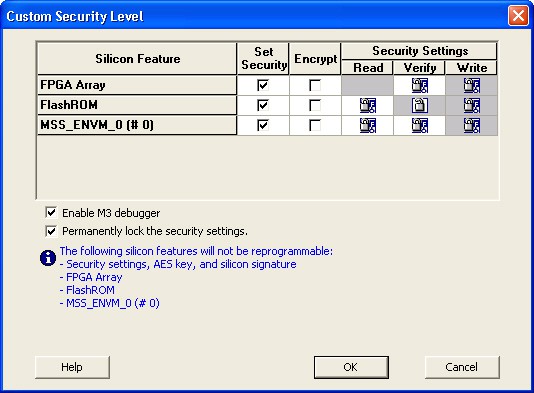

3. To use the Permanent FlashLock™ feature, select Lock for both writing and verifying for FPGA Array and Lock for both reading and writing for FlashROM and select the Permanently lock the security settings checkbox as shown in the figure below. This will make your device one-time-programmable.

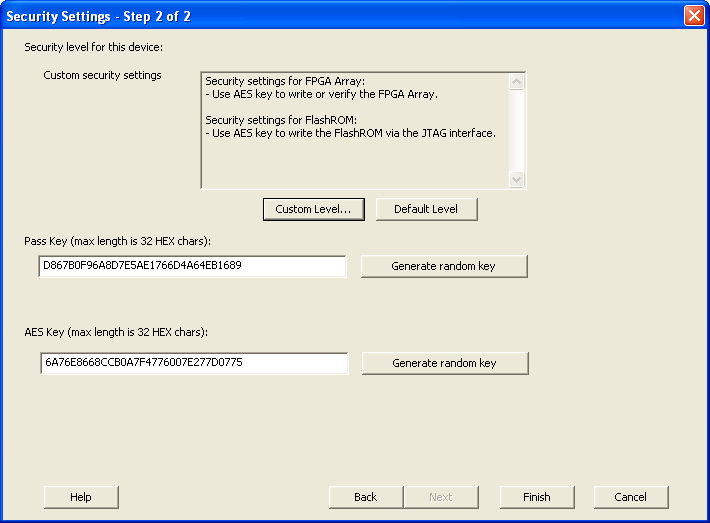

4. Click the OK button. The Security Settings page appears with the Custom security settings information as shown in the figure below.
