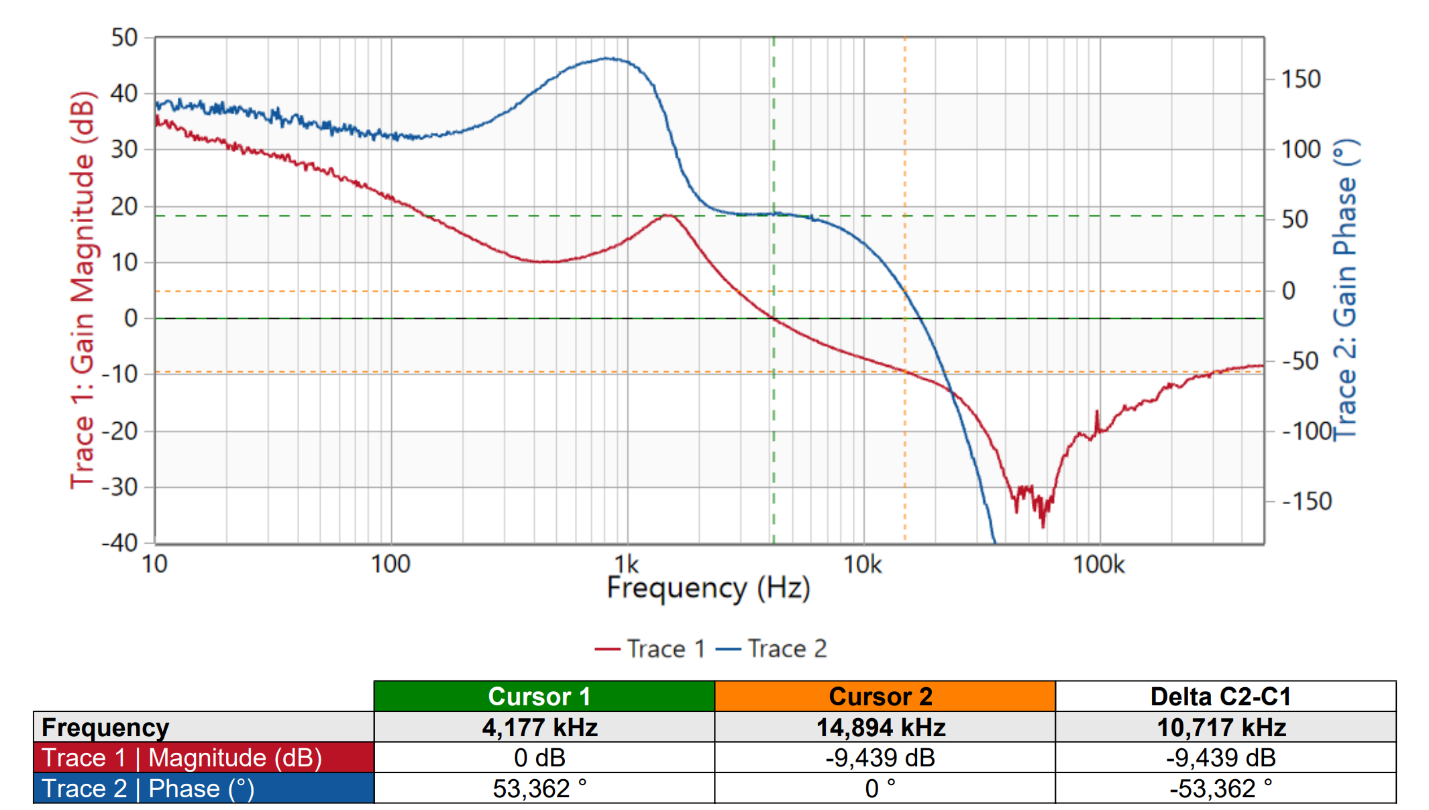

5.10.1 Current Loop Measurement for Single Rail Operation
 Test conditions: VIN = 800V, VOUT = 12V, IOUT = 80A Results:Phase margin = 53⁰ Gain margin = -9.4 dB Crossover frequency = 4177 Hz |
Test conditions: VIN = 800V, VOUT = 12V, IOUT = 80A Results:Phase margin = 53⁰ Gain margin = -9.4 dB Crossover frequency = 4177 Hz |
