5.30.28.4 Breakdown by Instance

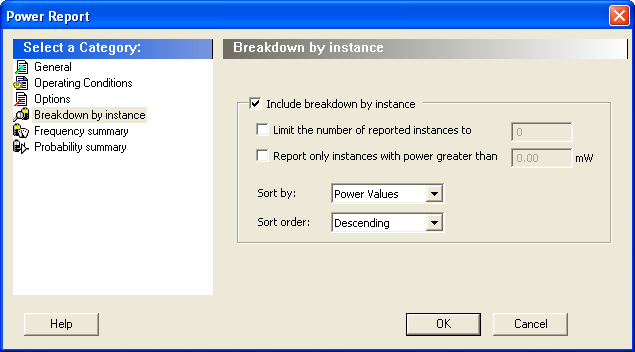

From this panel you can include the breakdown by instance in the report and set specific options.
Include breakdown by instance – This section shows the power consumption of each element that has been instantiated in the design: gates, nets, memories, and IOs.
The breakdown by instance can be filtered by:
- Limit the number of reported instances to: will limit the number of instances reported to the specified number.
- Report only instances with power greater than: any instance with power consumption below the selected value will not be reported.
This section can be sorted by selecting the preferred method:
- Sort by: Name (alphabetical) or Power Values
- Sort Order: Ascending or Descending
The filter reduces the number of lines in the report, one per instance.
