16.2 Components of NetlistViewer Standalone

NetlistViewer consists of three windows:

• Schematic
• Hierarchy View
• Search Tool

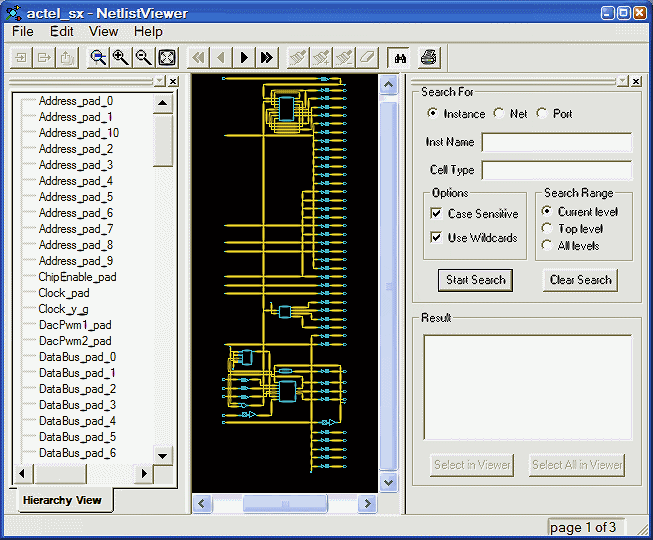

NetlistViewer also contains a menu bar, toolbar and status bar. The following figure shows the detailed NetlistViewer window.
