24.4.4.4.1 Command Data Structure

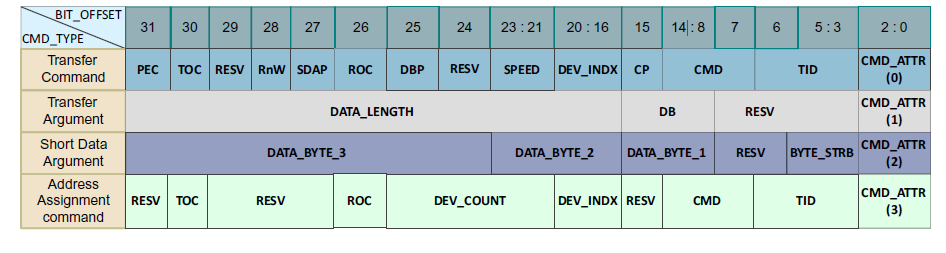

There are four types of data structures that are used to write the command queue register (I3CxCMDQUE):

Transfer Command Data Structure
Transfer Argument Data Structure
Short Data Argument Data Structure
Address Assignment Command Data Structure

A screenshot of a computer AI-generated content may be incorrect.
