8.6.1 Architectural Overview

The Crypto module is a simple interconnection of following independent blocks through Control/Configuration and memory access ports.

AES/HASH Engines
Asymmetric Crypto Engine
True Random Number Generator (TRNG)

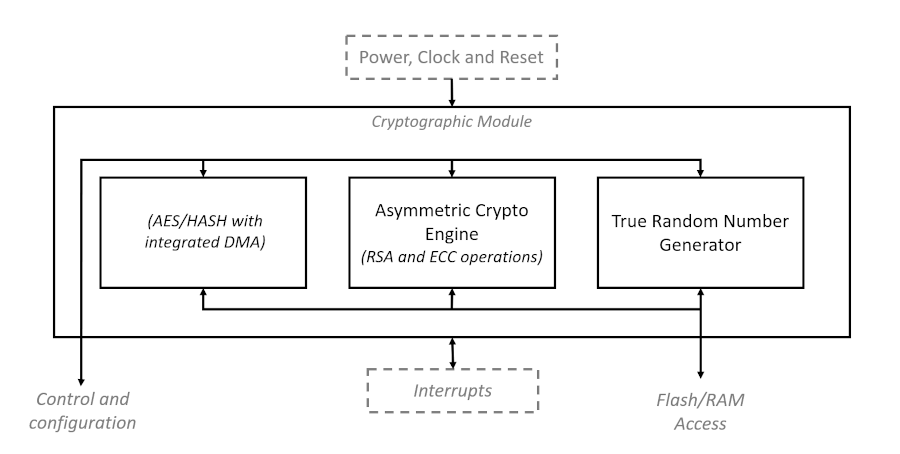

Figure 8-2 shows a simple high-level block diagram of the Crypto Module.
