13.29.28.4 Breakdown by Instance

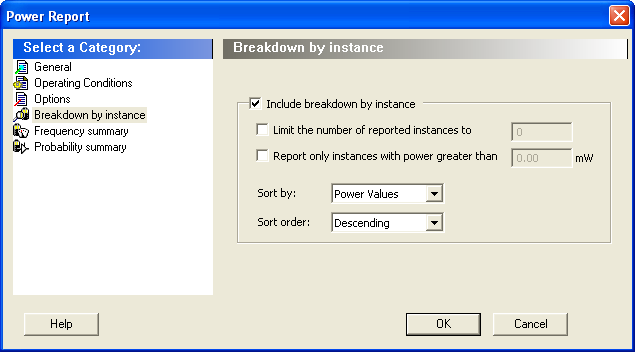

From this panel you can include the breakdown by instance in the report and set specific options.

Include breakdown by instance – This section shows the power consumption of each element that has been instantiated in the design: gates, nets, memories, and IOs.

The breakdown by instance can be filtered by:

• Limit the number of reported instances to: will limit the number of instances reported to the specified number.
• Report only instances with power greater than: any instance with power consumption below the selected value will not be reported.

This section can be sorted by selecting the preferred method:

• Sort by: Name (alphabetical) or Power Values
• Sort Order: Ascending or Descending
