15.3.4.4 Center to Net Driver

This feature allows you to easily retrieve the driver of a net.

To go to the net driver:

1. Select a net in NetlistViewer.
2. From either the Schematic menu or right-click menu, choose Go to Net Driver.

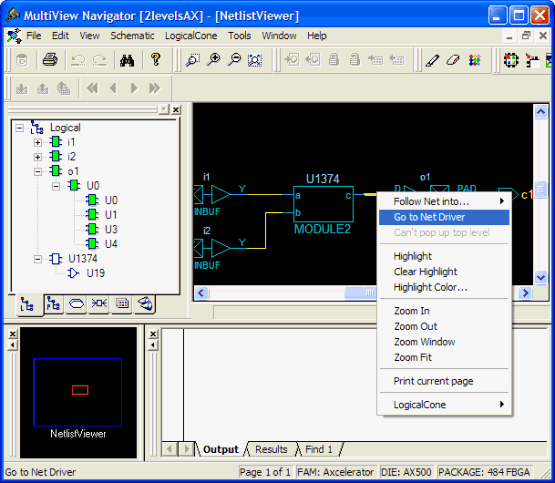

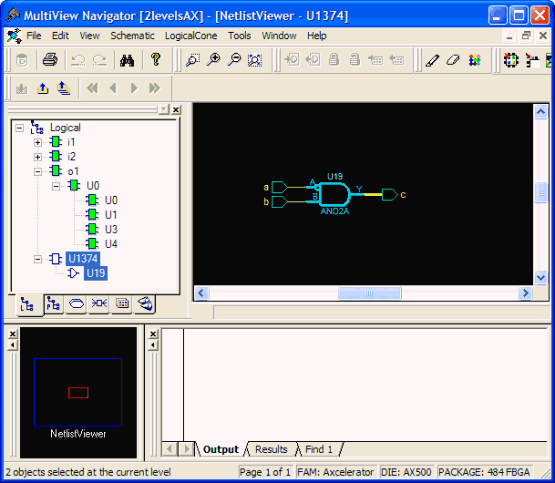

   NetlistViewer displays the actual driver of the net. For example, in the sample design shown below, U1374 is a hierarchical block. Selecting the net connected to its output pin, and then choosing Go to Net Driver from the right-click menu displays instance U19 inside of block U1374 because instance U1374/U19 is the actual driver of the net.
