20.2.3 Analysis Tab

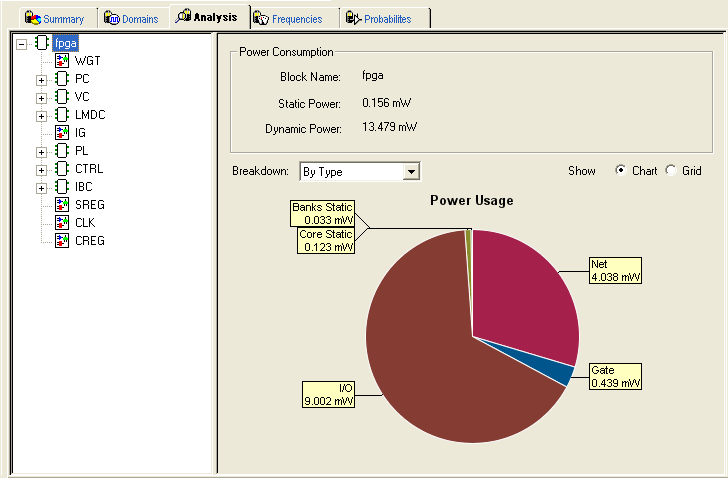

Figure 20-5. SmartPower Analysis Tab
þÿ
The Analysis tab enables you to inspect detailed hierarchical reports of the power consumption. The Analysis tab consists of two windows: the Hierarchy of Instances window and the Analysis window.
