20.2.15.5 Frequency Summary

From this panel you can include the frequency summary in the report and set specific options.

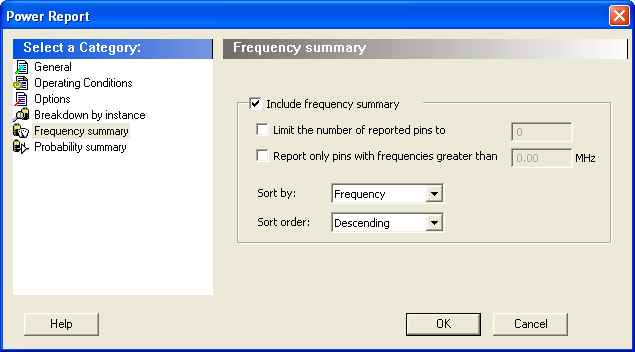

Figure 20-38. SmartPower Power Report Dialog Box - Frequency Summary Panel
þÿ

Include frequency summary : This section shows the frequency summary and reports the pin, net, domain, frequency, and frequency source for each pin.

The frequency summary can be filtered by:

  • Limit the number of reported pins to: will limit the number of pins reported to the specified number.
    • Report only pins with frequencies greater than: any pin with a frequency below the selected value will not be reported.

This section can be sorted by selecting the preferred method:

  • Sort by: Pin Name, Net Name, Domain, Frequency, or Source
  • Sort Order: Ascending or Descending
