20.2.17.2 Sampling Period

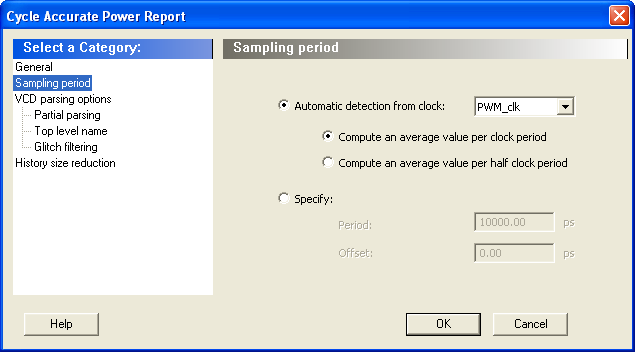

Figure 20-47. SmartPower Cycle Accurate Power Report Dialog Box – Sampling Period
þÿ

Automatic detection from clock: This option automatically detects the sampling period from the fastest clock. You can also select any other clock in your design. You can specify whether the average value is computed per period or half-period.

Specify: Select this option to specify the period and offset used to calculate the sampling period.
