20.2.10.3 Register Outputs

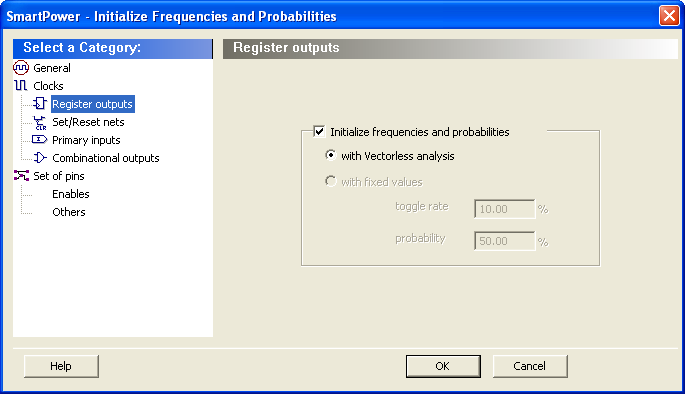

Figure 20-15. Frequencies and Probabilities Dialog Box –Registers

Initialize frequencies and probabilities: Select this option to initialize frequencies and probabilities for register outputs in your design.

With vectorless analysis: SmartPower initializes frequencies and probabilities using vectorless analysis.

With fixed values: SmartPower initializes frequencies and probabilities (%) of all register outputs with a default toggle rate (available only when using toggle rates) or frequency (when not using toggle rates), and a default probability.
