20.2.10.7 Enables

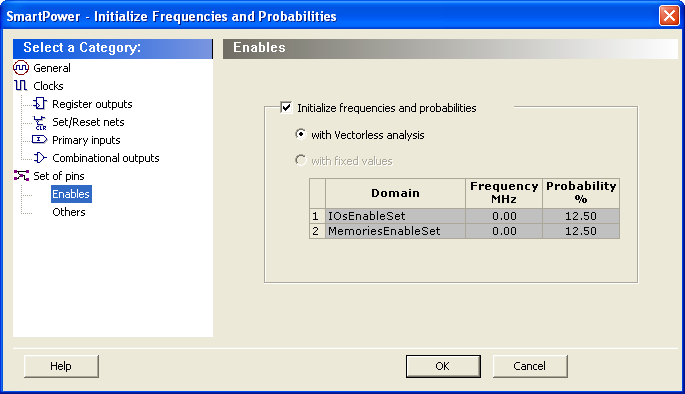

Figure 20-19. Frequencies and Probabilities Dialog Box – Enables
þÿ

Initialize frequencies and probabilities : Select this option to initialize frequencies and probabilities for the enable sets of pins in your design.

With vectorless analysis: SmartPower initializes frequencies and probabilities with vectorless analysis.

With fixed values: SmartPower initializes frequencies and probabilities of all enables sets of pins with the specified default probability and frequency.
